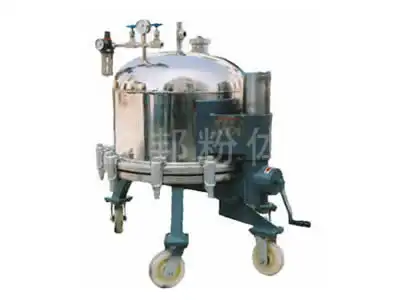

Working Principle of YL Series Pressure Filter
This machine is a pressure filtration and dehydration equipment with the intermittent operation. It has high solid recovery and can separate fine particles less than 1 micron with minimal slurry loss. Cylinders and parts in contact with materials are all made of stainless steel, polluting free. The side-mounted hand-operated lifting device is more user-friendly in design. It is easy to be operated, convenient and easy to be cleaned. Cylinders can do large rotation with 360 degrees. Its maintenance and product discharge are extremely convenient.
The matching of YL Series Pressure Filter
This machine is often used as a matching device of the stirring ball mills, horizontal ball mills and other equipment for quick dehydrating of the slurry. Compared with the traditional drying oven, it saves labor, time and energy.
Technical Parameters of YL Series Pressure Filter
| Model | YL-30 | YL-60 | YL-120 | YL-200 | YL-250 | YL-300 | YL-400 | YL500 |
| Effective Volume (L) | 30 | 60 | 120 | 200 | 250 | 300 | 400 | 500 |
| Pressure Filter Power | Pure Pressure Filter Air (0-4KG/cm2) | |||||||
Note: Model over YL300 adopts electric lifting device.
