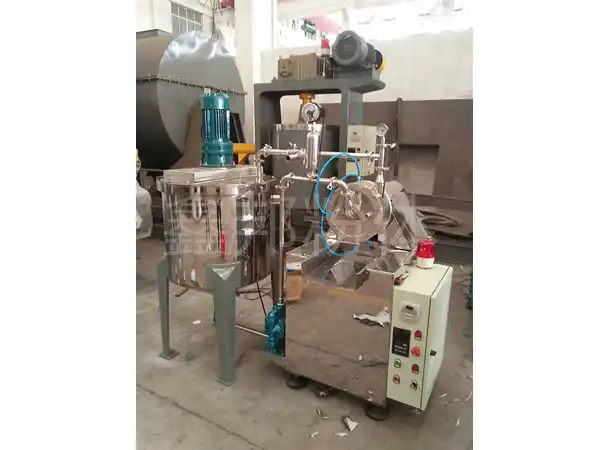

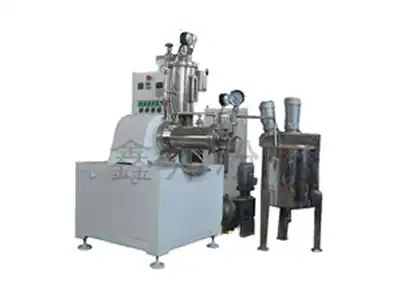

Structural Characteristics of WS Series Sand Mill
1. Grinding disc can be eccentric, three-eccentric or circular structure, arranged in a certain order, the distribution of grinding medium is even, the grinding efficiency is high, and the product fineness can reach micron or sub-micron level.
2. The separation system adopts clearance separator, with large flow area, good separation effect and long life of equipment.
3. The double-face mechanical seal assembly with forced coolant has good sealing effect and reliable operation.
4. Replacing the grinding cylinder and rotor, it can be changed into a large-flow circulating sand mill for grinding materials with high fineness, difficult dispersion or temperature-sensitive products.
5. Different materials of the cylinder and grinding disc can be chosen, such as stainless steel, ceramic, polyurethane, etc. in order to meet the quality requirements of different products.
Continuous Grinding Process of WS Series Sand Mill
The feed pump sends the pre-dispersed material into the sand mill, and the grinding cylinder is equipped with the grinding medium. After grinding, the material is discharged by a dynamic separator. Depending on the fineness of the product, single continuous or multi-series continuous grinding process can be used.
Circulating Grinding Process of WS Series Sand Mill
The feed pump sends the pre-dispersed material into the sand mill, and the grinded material returns to the material circulating cylinder by dynamic separator, and is carried on the circulating grinding. The circulating time depends on the fineness of the final product. The process is suitable for the high requirement of product fineness.
Application of WS Series Sand Mill
The smallest usable grinding medium is ￠0.2mm, which is used in the fields of dispersion, modification and preparation of nanomaterials. It has been successfully used in the production of nano titanium oxide, 500nm zirconia, D97<5um zirconium silicate, and 50nm silicon carbide.
Note: The machine is widely used in electronic industry, ceramic industry, chemical industry, medicine, metallurgy, coating ink, food, environmental protection and other powder processing industries.
