Structural Characteristics:
1. Separation of centrifugal feed beads without screen mesh, unimpeded discharge, never clogging, no trouble of screen mesh cleaning and blocking.
2. Patented separation technology makes the material coarse and fine separation and grinding. It has high efficiency and high production, increasing efficiency by more than 50% than the traditional horizontal machine.
3. The minimum available diameter of the grinding medium is 0.05 mm. 0.1mm, 0.2mm, 0.3mm, 0.5mm bead grinding are commonly used.
4. Realizing nano-scale fineness grinding and dispersion, D90<=100nm, the product has uniform particle size and narrow normal distribution range.
5. The rotor has turbine and pin structure, strong shear force, good cavity flow and uniform energy distribution.
6. Zirconia ceramic parts are used in the position to contact with materials, and SiC ceramic parts (better cooling) can be selected in cylinder and end cover liner. There is near zero metal pollution.
Scope of Application:
The nano-scale grinding and dispersion of electronic/ battery materials, ink-jet pigments, coatings, dyes, magnetic materials, ceramics, pharmaceuticals, biology, nano-silicon powder, quartz, silicon carbide, tungsten carbide and other materials.

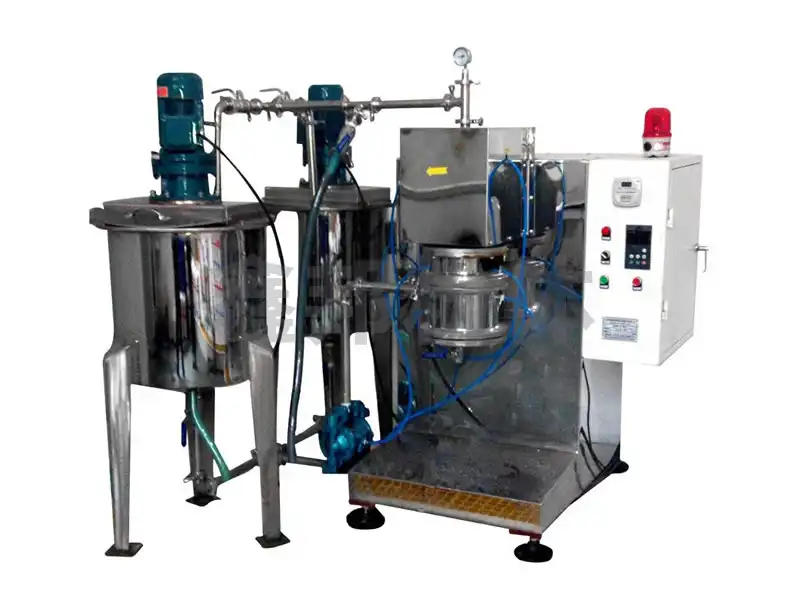

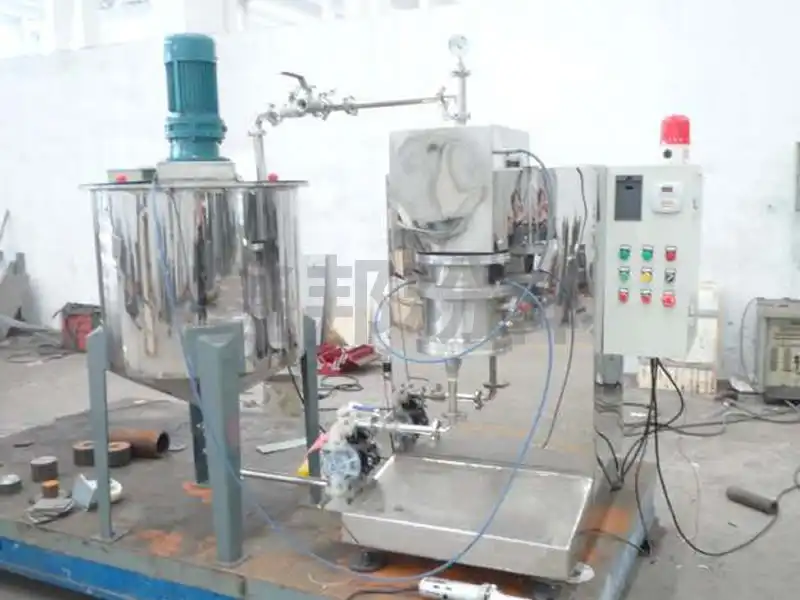

| CXML Series Nano-Scale Efficient Vertical Sand Mill | ||||||
| Model | Volume (L) | Power (KW) | Motor Speed (R/MIN) | Flow Rate (KG/H) | Grinding Bead Diameter (MM) | Weight of Beads (KG) |
| CXML-3 | 3 | 11 | 2800 | 200-300 | 0.1-0.4 | 8 |
| CXML-10 | 10 | 22 | 1450 | 400-500 | 0.1-0.4 | 25 |
| CXML-20 | 20 | 37 | 1450 | 500-800 | 0.1-0.4 | 50 |
| CXML-30 | 30 | 45 | 1450 | 1000-1500 | 0.1-0.4 | 70 |
| CXML-50 | 50 | 75 | 1450 | 2000-4000 | 0.1-0.4 | 125 |
