The company is based on customers, adhere to the aim of whole-hearted service for customer and continuously develop and improve for "higher grade, more precise and more advanced" direction. On the basis of summarizing the four existing and difficult problems that horizontal machine has, and which are also the four pain points in customer’s using experience, the company has developed a vertical sand mill without shaft seal and screen mesh with independent intellectual property rights, which has successfully solved the above mentioned four problems of horizontal machine.
The Four Problems of Horizontal Machine:
(1) Leakage and damage of the shaft seal;
(2) Screen mesh clogging;
(3) It is difficult to grind with ultrafine beads;
(4) Non-uniform particle size of the product.

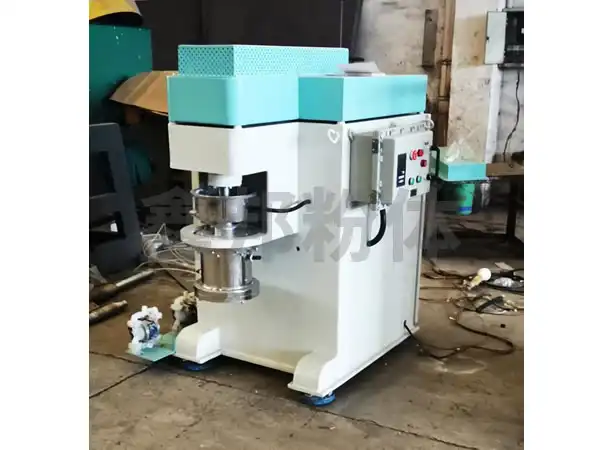

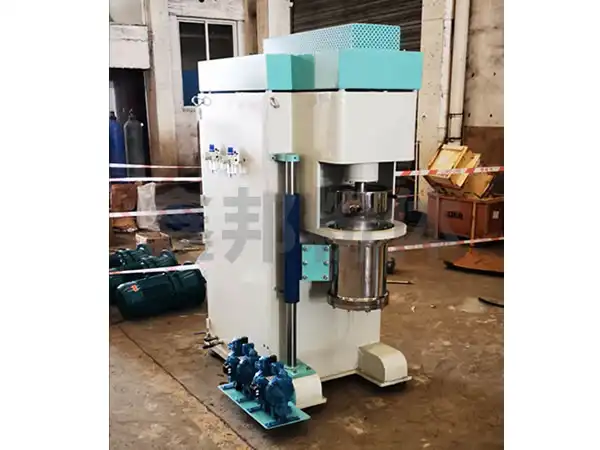

The advantages of XBL series vertical sand mill without shaft seal and screen mesh are as follows:
(1) No shaft seal: no leakage, damage, maintenance problems;
(2) No screen mesh: no blockage, no need to clean screen mesh and sieve beads;
(3) Grinding fineness: It can realize material micron, sub-micron and nano-scale.
(4) Ultra-fine grinding media: Φ0.05-1.0mm, micro-bead ultra-fine grinding can be achieved;
(5) High efficient grinding: The power is mainly used in the grinding of large particles effectively, the efficiency is increased by more than 50% than the horizontal machine;
(6) Grading separation and grading grinding function: With the effect of centrifugal separation, fine particles are discharged into the grinding cavity. Less grinding times can prevent over-grinding. Large particles can not be discharged and are grinded in the grinding cavity for several times or even dozens of times, quickly be grinding fine. The final product particles are very uniform, very narrow distribution.
The company's products are now matural and widely used in advanced ceramic materials (silicon nitride, zirconium oxide, boron carbide, boron nitride, alumina, etc.), new carbon materials (carbon nanotubes, carbon fiber, graphite, carbon composite materials and graphene, etc.), new energy materials (lithium iron phosphate, lithium cobalt acid, crystalline silicon, etc.) and various nano-coating, ink, pigment, clay and other fields. They are worthy of the advanced nano-material production experts.
| Model | Volume (L) | Power (KW) | Motor Speed (R/min) | Flow Rate (KG/H) | Grinding Bead Diameter (mm) |
| XBL-3 | 3 | 7.5 | 2800 | 200-300 | 0.05-1.0 |
| XBL-10 | 10 | 11 | 1450 | 400-500 | 0.05-1.0 |
| XBL-20 | 20 | 18.5 | 1450 | 500-800 | 0.05-1.0 |
| XBL-50 | 50 | 55 | 960 | 2000-4000 | 0.05-1.0 |
| XBL-100 | 100 | 110 | 960 | 3000-5000 | 0.05-1.0 |
