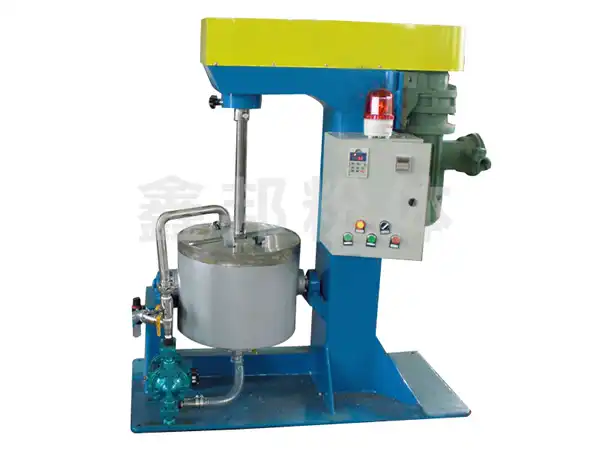

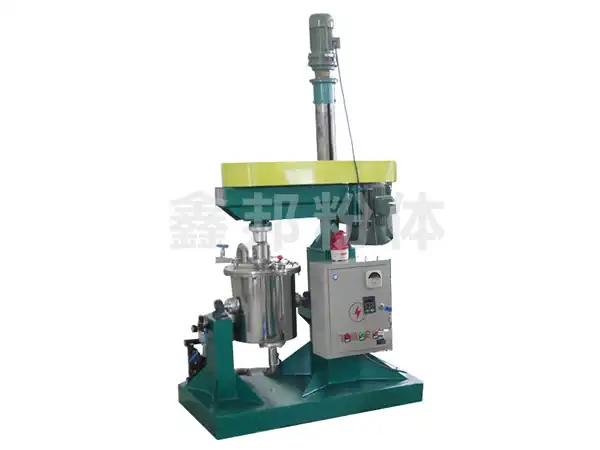

Working Principle of Vertical Elevation Type Stirring Ball Mill
The advent of the vertical lifting ball mill has not only developed China’s unique patented technology combining the vertical stirring ball mill and the elevator, but also it is at the leading level in the world.
At present, the main parts of the existing vertical stirring ball mill include stirring shaft, stirring rod, frame, motor, reducer, ball grinding barrel and so on. Because the frame is an integral welding work piece, there is a lot of inconvenience in the use. This equipment has a split structure, which can be lifted up and down electrically. The ball mill barrel turnover adopts the turbo-worm structure, which has the advantages of simple operation, time-saving and labor-saving, convenient and efficient and repair maintenance.
Application of Vertical Elevation Type Stirring Ball Mill
This equipment is widely used in electronic industry, ceramic, chemical industry, ink, coating, cosmetics and other industries. In addition, the equipment is equipped with the company's newly developed powder processing technology, so that the powder processing time for some industry specially ceramic industry has been reduced to the present two hours from more than 20 hours using the original equipment with a fraction of the energy consumption.
Technical Parameters of Vertical Elevation Type Stirring Ball Mill
| Model | Barrel Volume (L) | Ball Milling Medium Volume (L) | Milling Medium Quantity (L) | Mill Power (kw) |
| SQM-20 | 20 | 10 | 10 | 2.2 |
| SQM-30 | 30 | 15 | 15 | 3 |
| SQM-70 | 70 | 35 | 35 | 5.5 |
| SQM-100 | 100 | 50 | 50 | 7.5 |
| SQM-200 | 200 | 100 | 100 | 11 |
| SQM-500 | 500 | 250 | 250 | 22 |
| SQM-600 | 600 | 300 | 300 | 22 |
| SQM-1000 | 1000 | 500 | 500 | 34 |
| SQM-1500 | 1500 | 750 | 750 | 42 |
如果需要立式升降式搅拌球磨机的规格，了解立式升降式搅拌球磨机的原理以及立式升降式搅拌球磨机的价格，或者遇到了立式升降式搅拌球磨机常见问题，请联系无锡立式升降式搅拌球磨机的制造商——无锡鑫邦粉体，电话：0510-83383223
