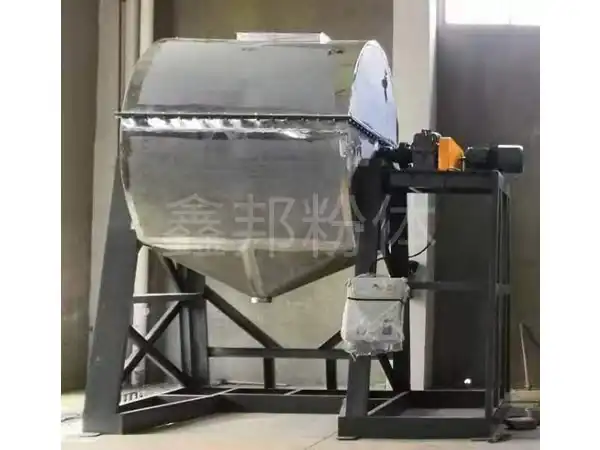

The Lining Material of WSM Closed Dry Process Ball Mill
WSM closed dry process ball mill has a unique design concept. During the continuous grinding process, the material is fed from the top of the inner cylinder and moved around through the inner cylinder and rolling medium. The grinded powder which has reached the needed particle size is continuously dispersed through the unique grinding inner cylinder while the relatively coarse particles remain in the grinding cylinder and continue to be grinded. So that the required particle size can be ensured. The system has good sealing performance and can deal with a large number of materials.
Characteristics of WSM Closed Dry Process Ball Mill
WSM closed dry process ball mill is generally used in ceramic powder, ferrite, glass raw materials, metal powder, ore machinery, alloy, coal, coke and other industries. Its lining material can be chosen: optional nylon, stainless steel, polyurethane, alumina porcelain, zirconia porcelain etc. The variable frequency speed regulating mechanism can be selected.
Technical parameters of WSM Closed Dry Process Ball Mill
| Model | Total Volume | Φ | DL | Electric Motor | Rotational Speed | Feed Port |
| WSM-60 | 60L | Φ420 | 420 | 0.75-1.1 | 46 | 180 |
| WSM-100 | 100L | Φ500 | 520 | 1.1-1.5 | 40 | 180 |
| WSM-200 | 200L | Φ650 | 630 | 2.2-3.7 | 35 | 180 |
| WSM-300 | 300L | Φ720 | 750 | 3.7-5.5 | 31 | 180 |
| WSM-500 | 300L | Φ870 | 850 | 5.5-7.5 | 28 | 230 |
| WSM-800 | 800L | Φ1070 | 1010 | 5.5-11 | 28 | 230 |
| WSM-1000 | 1000L | Φ1090 | 1090 | 7.5-15 | 21 | 300 |
| WSM-1500 | 1500L | Φ1250 | 1250 | 11-18.5 | 18 | 400 |
| WSM-2000 | 2000L | Φ1370 | 1370 | 15-37 | 18 | 400 |
| WSM-3000 | 3000L | Φ1570 | 1570 | 18.5-55 | 16 | 500 |
| WSM-5000 | 5000L | Φ1860 | 1860 | 37-75 | 16 | 500 |
