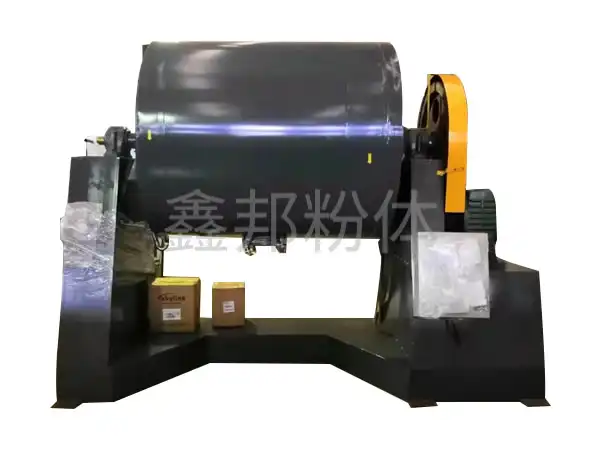

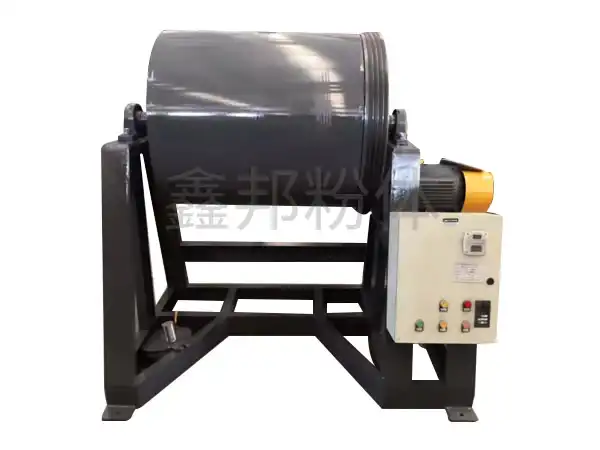

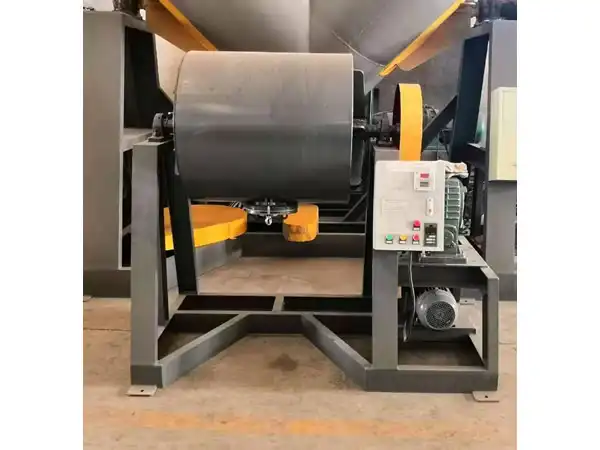

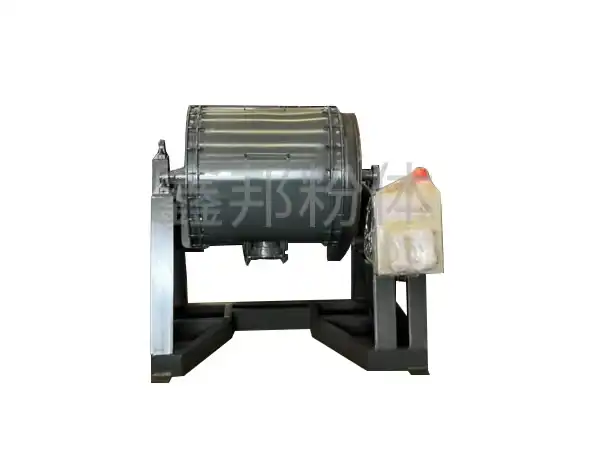

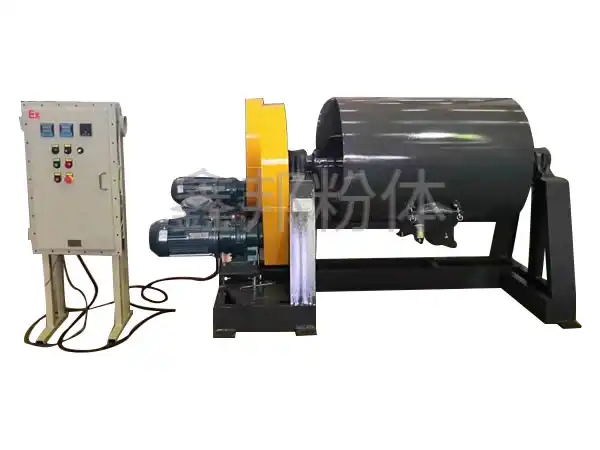

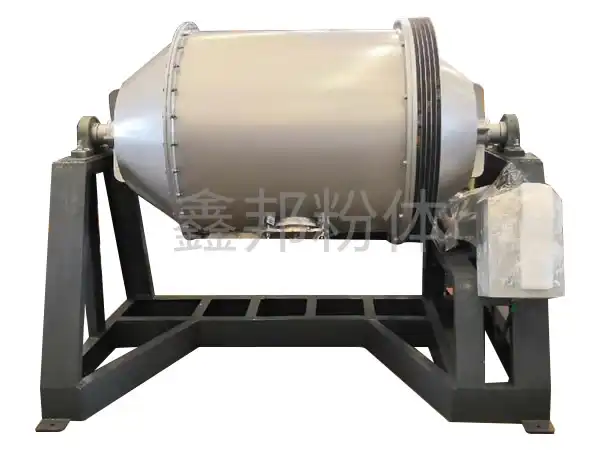

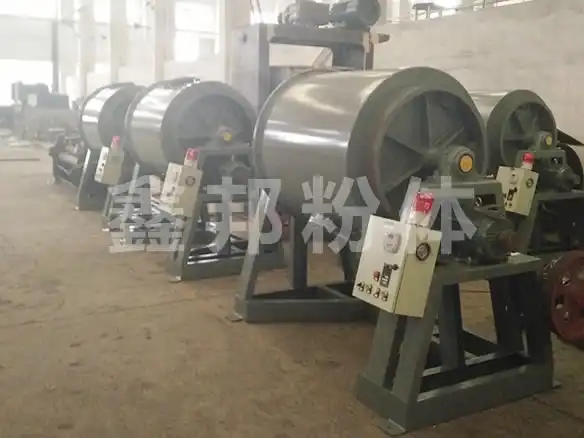

The Lining Material of WSM Horizontal Ball Mill
The horizontal ball mill is mainly used for material mixing and grinding. Its product fineness is even helping to save energy. It can do either dry or wet grinding. You can use different type of tube wall of the machine according to production need to meet different material grinding requirement. The fineness of grinding operation is controlled according to the grinding time. Its structure is divided into horizontal and independent.
Horizontal ball mill has the advantages of less investment, energy-saving and electricity-saving, novel structure, simple operation, safe use, stable and reliable working performance. It is suitable for the mixing and grinding of common or special materials. Users can choose the right type and cylinder, grinding type taking the proportion and hardness of materials, the production output and other factors into comprehensive consideration.
You can choose nylon, stainless steel, alumina, manganese steel, polyurethane, and other lining, It can be equipped with variable frequency speed adjustment mechanism according to the requirements of users.
WSTechnical Parameters of WSM Horizontal Ball Mill
| Model | Volume | ΦD | L | Electric Motor | Rotation Speed | Feed Port | Discharge Valve |
| WSM—60 | 60L | Φ420 | 420 | 0.75—1.1 | 46 | 180 | 1” |
| WSM—100 | 100L | Φ500 | 520 | 1.1—1.5 | 40 | 180 | 1.5” |
| WSM—200 | 200L | Φ650 | 630 | 2.2—3.7 | 35 | 180 | 1.5” |
| WSM—300 | 300L | Φ720 | 750 | 5.5—7.5 | 31 | 180 | 1.5” |
| WSM—500 | 500L | Φ870 | 870 | 3.7—5.5 | 28 | 230 | 2” |
| WSM—800 | 800L | Φ1070 | 1010 | 5.5—11 | 28 | 230 | 2” |
| WSM—1000 | 1000L | Φ1090 | 1090 | 7.5—15 | 21 | 300 | 2” |
| WSM—1500 | 1500L | Φ1250 | 1250 | 11—18.5 | 18 | 400 | 2.5” |
| WSM—2000 | 2000L | Φ1370 | 1370 | 15—37 | 18 | 400 | 2.5” |
| WSM—3000 | 3000L | Φ1570 | 1570 | 18.5—55 | 16 | 500 | 3” |
| WSM—5000 | 5000L | Φ1860 | 1860 | 37—75 | 16 | 500 | 3” |
