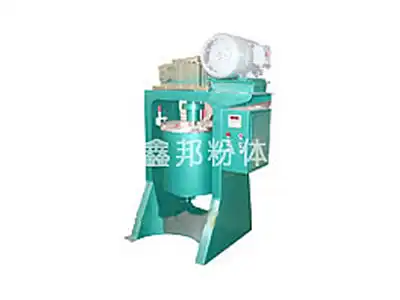

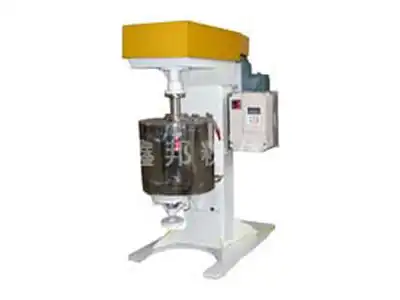

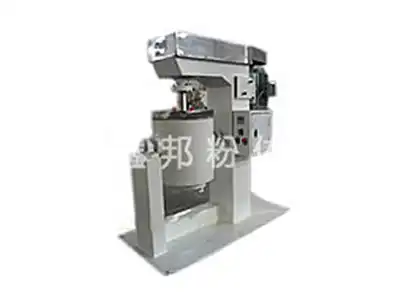

Working Principle of GSM Series Dry Process Ball Mill
GSM stirring grinding machine has a unique patent design concept. It contains a new internal structure of the grinding cylinder, allowing the spindle to have a higher speed in order to achieve a finer grinding. It uses the continuous operation mode with side-out discharge.
GSM has a series of stirring arms with special shapes, and the splitter plate is installed axially on the stirring shaft. With this brand-new design, smaller grinding media and higher speed RPM can be used, which increases the residence time of the material in the grinding chamber. Therefore, it can ensure that the granularity of the discharge is finer.
Accessories and Selection of GSM Series Dry Process Ball Mill
△ Complete Integrated System
△ Stainless Steel Grinding Cylinder
△ Full Jacket Grinding Cylinder
△ Air-cooled or Explosion-proof motor
△ High Efficient Side-out Discharge
Technical Parameters of GSM Series Dry Process Ball Mill
| Model | GSM-30 | GSM-70 | GSM-100 | GSM-200 | GSM-500 |
| Ball Mill Barrel Volume (L) | 30 | 70 | 100 | 200 | 500 |
| Ball Milling Medium Volume (L) | 12 | 25 | 35 | 70 | 180 |
| Standard Processing Capacity (L) | 10 | 25 | 35 | 70 | 180 |
| Drive Power (kw) | 5.5 | 7.5 | 11 | 22 | 45 |
| Dimensions: (m) Length × Width × Height | 1.2 ×0.8×1.29 | 1.5×0.9×1.6 | 1.6×1×1.7 | 1.9×1.1×2 | 2.2×1.4×2.5 |
